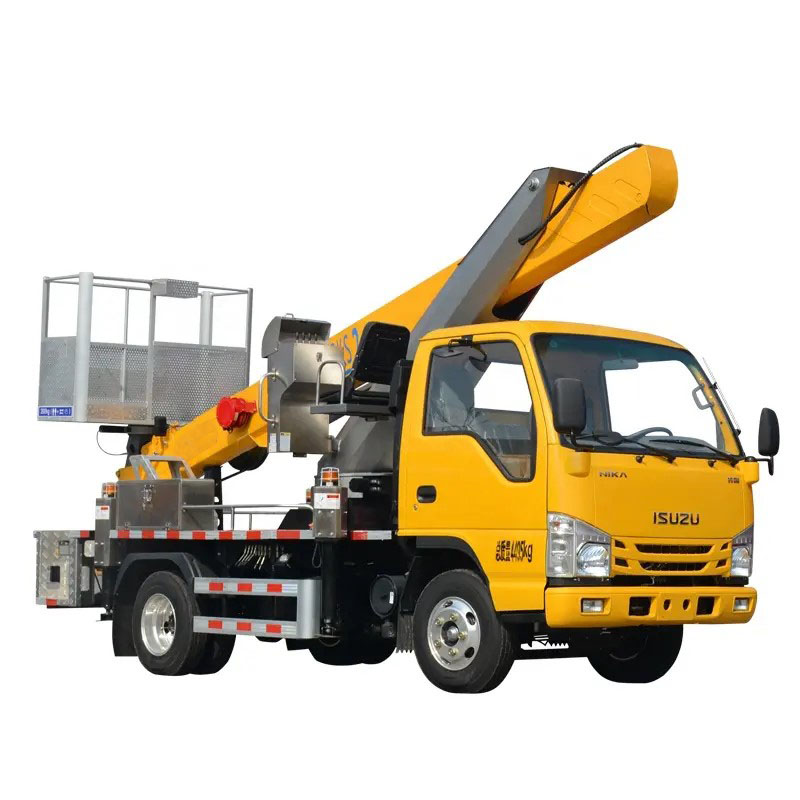

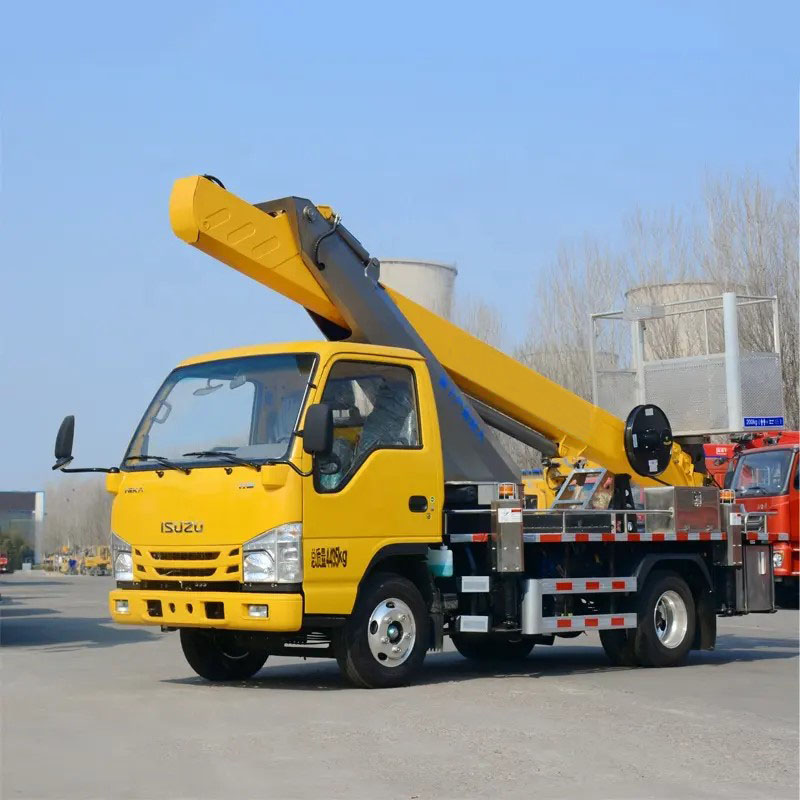

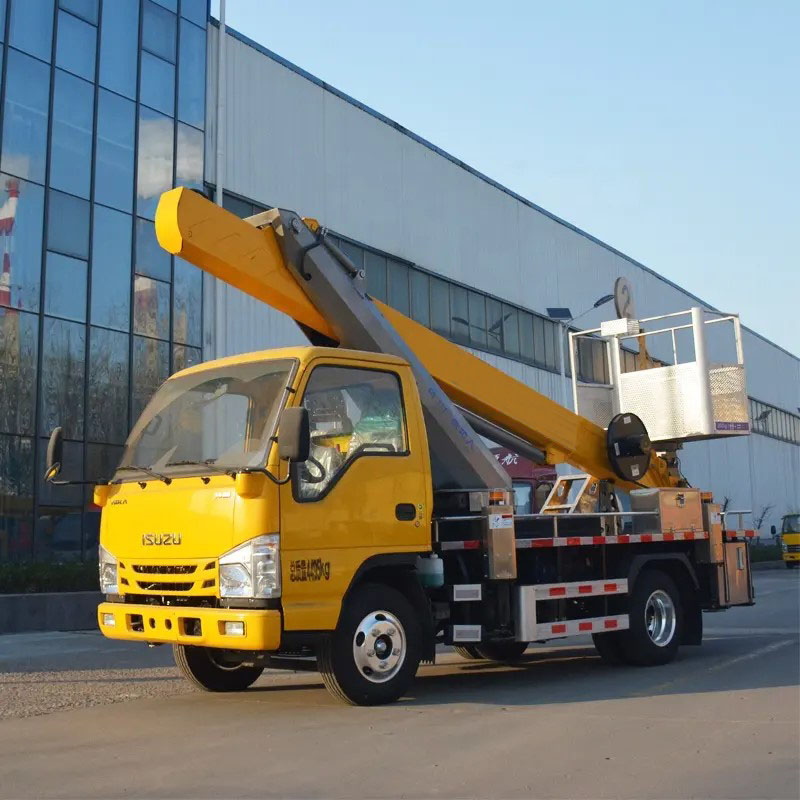

23m isuzu aerial work platform truck aerial platform truck mounted crane vehicle high working platform

Bodywork configuration

Car configuration

working height

23 meters

chassis

Isuzu

Maximum operating range

12.6 meters

engine

Isuzu 120 hp

Working platform rated load

200KG

gearbox

Isuzu MSB five gear box

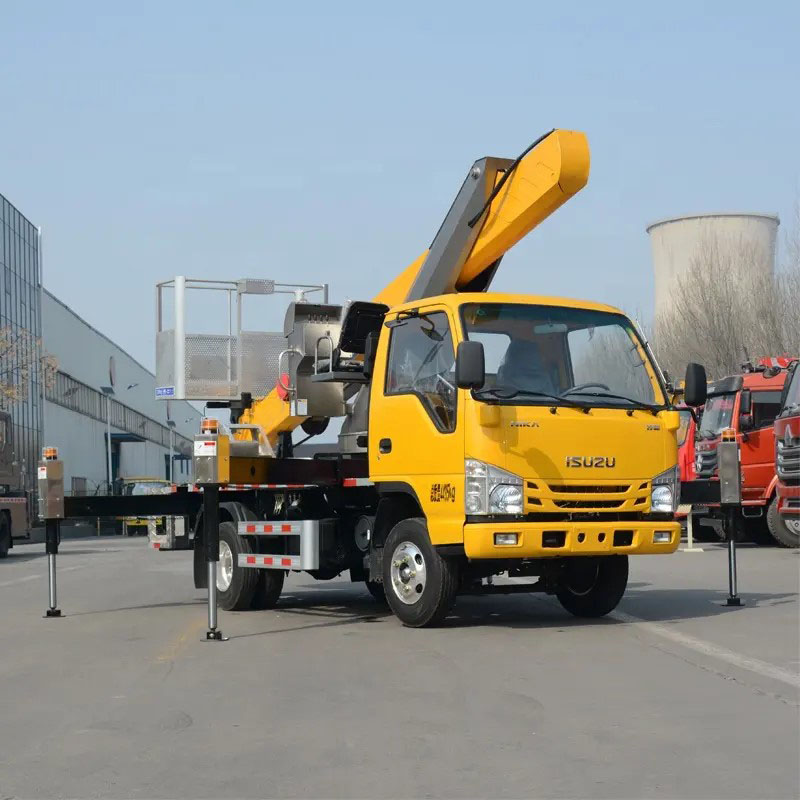

Outrigger span (front V rear H)

4295/4286mm(Lateral front/rear)

tire

650-16

3995/3845mm(longitudinal front/rear)

wheelbase

2795mm

Rotary device

360°infinite spin gondola

360°turn around

Axle load

1700/2795KG

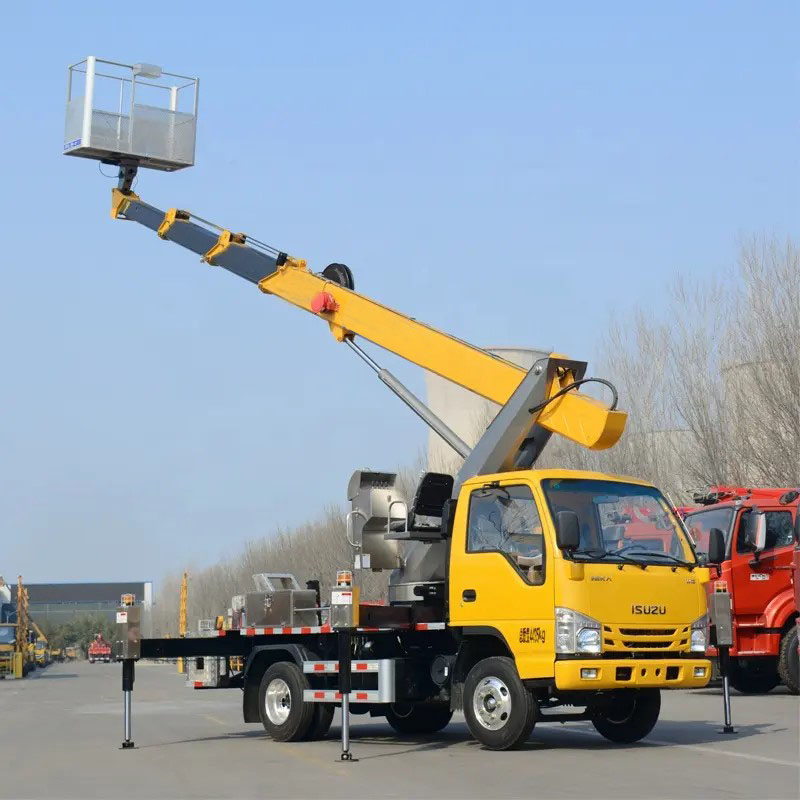

Boom structure

Five-section arm Synchronous scaling

vehicle size

5950*2050*3100mm

Operation method

turntable, remote control

total mass

4495KG

Basket size

1500*710*1000mm

curb weight

4365KG

number of passengers

2 people
